Acer Aspire 5349-2592 Fan Replacement

Сложность

Moderate

Шаги

8

Необходимое время

7 - 10 минут

Введение

A bad disc drive can cause an assortment of issues on the computer. It could cause an error when reading CD and DVD, the CD or DVDs may not play audio or video properly, and DVD programs may not install properly.

  1. h5CaLOOJUQRsudgD

    • Turn the laptop over so that the back is facing you.

  2. 3qKH1lxSOJYuHlE6

    • Push the laptop battery release lock.

  3. OsNPMQDycDGB4IVk

    • Now that the Acer-Aspire 5349-2592 laptop battery is unlocked, press the battery release button down.

  4. NIiCmYUxSYFS5Uqg

    • Holding down the laptop battery release button, gently pull the battery away from the laptop.

  5. 1nAPoSZxmU2eJpec

    • Remove all of the screws located on the back of the laptop using your Phillips #0 screwdriver.

  6. X1NxoRJsbIGqufGc

    • Pry open the backplate using the iFixit opening tool and remove the backplate from the device.

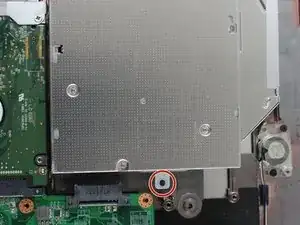

  7. 3M4AafDCtaaj11LJ

    • Unscrew the single screw on the DVD drive with your Phillips #0 screwdriver.

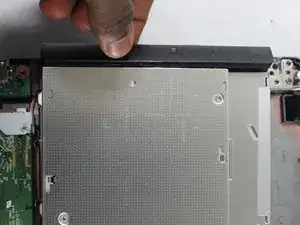

  8. qQEfwC6R6wkZuqey

    • Gently lift the drive up and remove it from the pin.

Заключение

To reassemble your device, follow these instructions in reverse order.
