Acer Aspire 5100 Hard Drive Replacement

Сложность

Moderate

Шаги

6

Необходимое время

20 - 30 минут

Введение

This guide has been updated! Read the new guide here.

This guide will show you how to replace/upgrade the hard drive in your Acer Aspire 5100 laptop.

Инструменты

  1. hoZR5lPr2TYQYWO1

    • Make sure the laptop is turned off and unplugged.

    • Flip the laptop over so the audio jacks are facing you.

    • Unlock the battery by sliding the button (located above the battery) towards the outer edge of the computer. When you feel the battery release and pop up, gently pull the battery from its compartment.

    remove battery first

    lavakumar -

  2. PtvGNdOQMeIAubi3

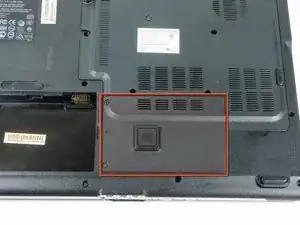

    • Start by locating the small panel directly to the right of the battery.

  3. ByROOCMB3TxO6H5U

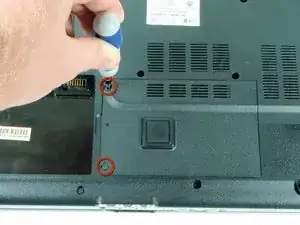

    • Remove the two screws securing the panel.

  4. iF3B4gKavFKDsEwK

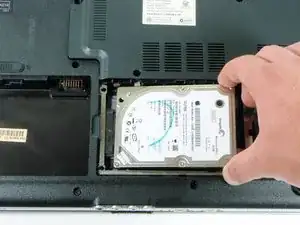

    • Grip the right side of the hard drive and pull towards the right side of the computer

    • Remove the mounting bracket from the old hard drive.

    • Transfer the mounting bracket to the new hard drive and install the new drive.

Заключение

To reassemble your device, follow these instructions in reverse order.
