Acer Aspire 4743-6481 DVD Drive Replacement

Автор: Filippo Santoro
  • Комментарии: 0
Acer Aspire 4743-6481 DVD Drive Replacement

Сложность

Easy

Шаги

7

Необходимое время

7 минут

Введение

If you are having trouble opening your DVD drive or reading CDs with it, use this guide to replace it with a new one.

  1. I6i1vEF6DNXjUYUS

    • Turn over the laptop to view the underside.

  2. q31OPtIHaMSB6pEL

    • Use tweezers (or a similar tool) to slide the orange push pin. To release the battery, push it to the left.

  3. JcQHIXQnrnjaRrgt

    • You can lift the battery up and out now.

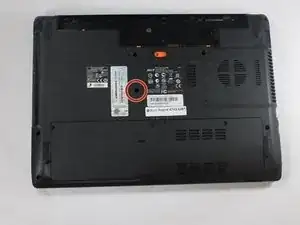

  4. 13fZW6dUJv6UTLQ1

    • Remove the 7.0 mm screw, circled in the picture, using a Phillips head screwdriver.

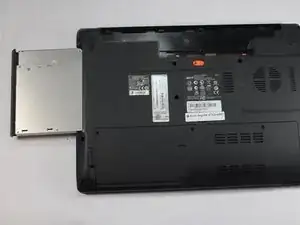

  5. GpMPlmcUBvLcCwIg

    • Once the screw is removed, the DVD drive should easily slide out

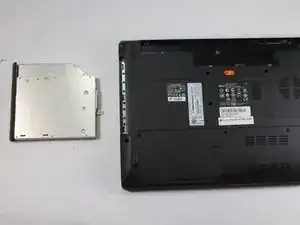

  6. 3IuQPfSWSVAxeHIs

    • Remove the drive completely.

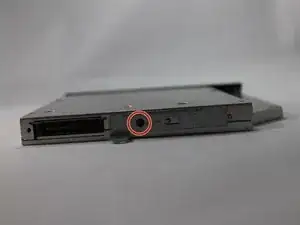

  7. iQbZnXit6fsRgf3X
    iQbZnXit6fsRgf3X
    3KnqVSglXZsOvxFG

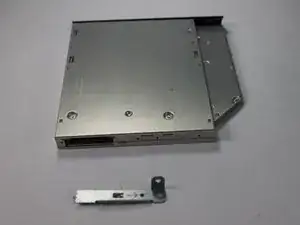

    • Face the side of the DVD drive that connects to the laptop and remove the 3mm screw with a Phillips head screwdriver.

    • Put the screw and the bracket to the side as you may need it for your replacement.

Заключение

To reassemble your device, follow these instructions in reverse order.
