Acer Aspire 4741G-332G32Mn DVD Drive Replacement

Автор: kristen
  • Комментарии: 1
Acer Aspire 4741G-332G32Mn DVD Drive Replacement

Сложность

Moderate

Шаги

6

Необходимое время

20 минут

Введение

  1. d4JFLKDb33eApSJZ

    • Flip the lock latch to unlock battery.

  2. JZAo2kyNFrvstR2u

    • Slide the middle latch and remove the battery.

    Thank you. Why can’t all instructions be so clear and succinct.

    May -

  3. M5YXgbJItOVFNGbR
    M5YXgbJItOVFNGbR
    1vBjjbhsJvOBIRJd
    eJxwiTwWk4qjaooD

    • Pry off the keyboard using the opening tool.

    • Remove the two screws that are connected to the motherboard using a Phillips #0 screwdriver.

  4. OPpRhA1IQPb2pggA

    • Remove all 12 screws from the backplate using a Phillips #0 screwdriver.

  5. sIsCUGBhVFeTeunC

    • Using the prying tool to remove the bottom of the laptop.

  6. Yym1JgjuaDtdgNMU

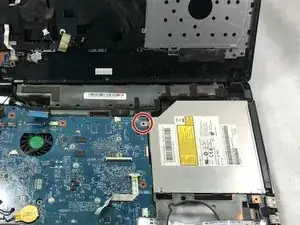

    • Remove the screw that is connecting the DVD drive to the motherboard and slide DVD drive out.

Заключение

To reassemble your device, follow these instructions in reverse order.
