Acer Aspire 3 A315-21-92FX Battery Replacement

Автор: ShengKun Lu
  • Комментарии: 1
Acer Aspire 3 A315-21-92FX Battery Replacement

Сложность

Moderate

Шаги

13

Необходимое время

15 минут

Введение

This replacement guide will show you how to replace a faulty battery in your Acer Aspire 3 A315-21-92FX.

A failing battery will cause your Acer Aspire 3 A315-21-92FX to fail to start after pressing the start button. Before using this guide to replace the battery, make sure to review the troubleshooting page for verifying that the problem is related to the battery.

  1. LZMn4OdboyKK6K6o

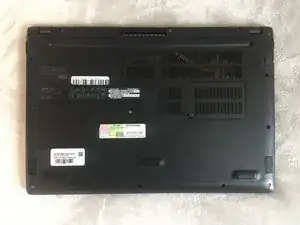

    • Flip the Acer Aspire 3 A315-21-92FX over so the back-side is oriented to the upward position.

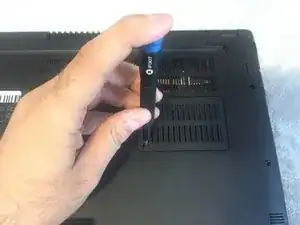

  2. I1JFtQYPY1wTHPA2
    I1JFtQYPY1wTHPA2
    fiqRAVgVoWi6Q62X

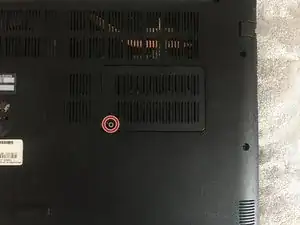

    • Remove the single 2.5mm Phillips #0 screw.

  3. GskSkbaal12yLAxe

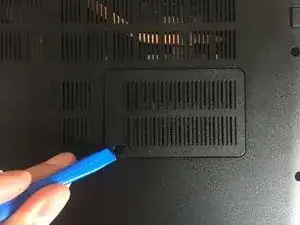

    • Use the iFixit opening tool to remove the small cover.

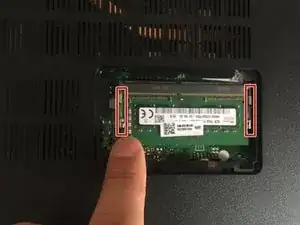

  4. ycwJXcJbCprsSXxJ
    ycwJXcJbCprsSXxJ
    FDDIS1NHsZ2PXVHM
    1VUo5VEEag1VrBoj

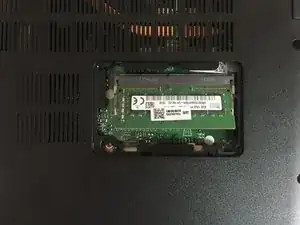

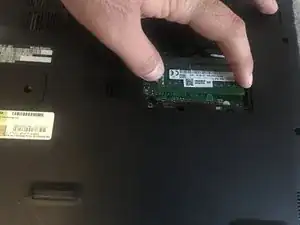

    • Press the tabs on each side of the RAM outwards, and the memory module will pop up at an angle.

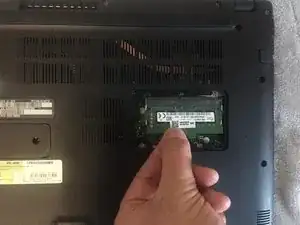

  5. carVLft44k1YyvWN
    carVLft44k1YyvWN
    mGSxekKxMADxgm5h

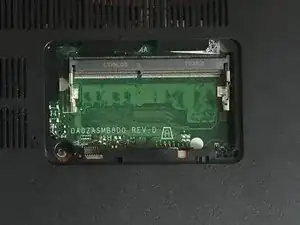

    • Pull the RAM slowly out of the Acer Aspire 3 A315-21-92FX.

  6. AIaDxJkHSuFcHmfP

    • Please make sure that there is no external access to the battery, and the battery is out of power.

    • Flip the Acer Aspire 3 A315-21-92FX over, so the back-side is oriented to the upward position.

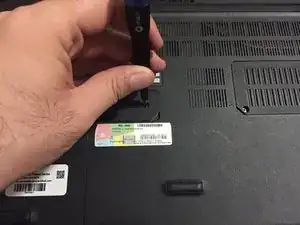

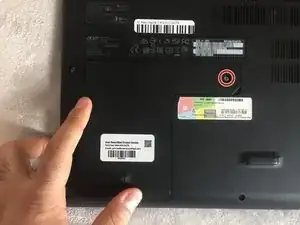

  7. xiQS1OVEtHP4MIMJ
    xiQS1OVEtHP4MIMJ
    XRsCDXDWQNB5l6CJ

    • Remove the single 2.5mm Phillips #0 screw.

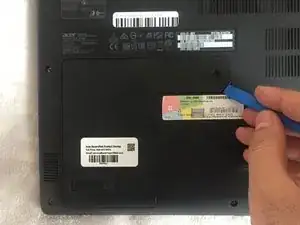

  8. JL5rTroZ2yAPLTaS

    • Use the iFixit opening tool to remove the cover of the hard disk.

  9. JZ1cywP4ogHFFUUD
    JZ1cywP4ogHFFUUD
    xdahojYZ5Kd4hBUw

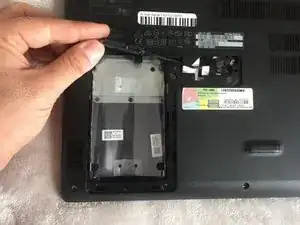

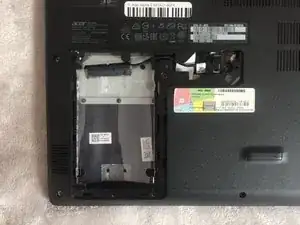

    • Pull the hard disk out of the Acer Aspire 3 A315-21-92FX slightly and slowly.

    • This laptop is missing the hard drive.

  10. ZTUwRRGiBhf2sKCf

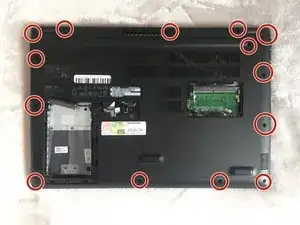

    • Remove fourteen 2.5mm Phillips #0 screws from the back of the laptop.

    • There may be two additional screws under the hard drive cover that must be removed before attempting to remove the back cover.

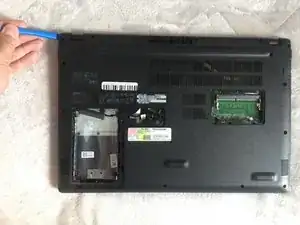

  11. 2UvMRs1InvV3ZtCv
    2UvMRs1InvV3ZtCv
    5qacNQgbNbSPFy6F
    cU4owT5iKpyKrouY

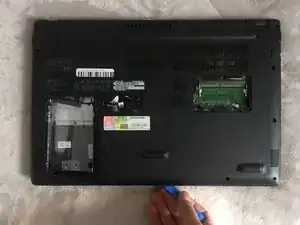

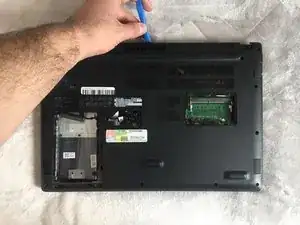

    • Use the iFixit opening tool to remove the back cover.

  12. fKoe6cSD4Nr3PS1r
    fKoe6cSD4Nr3PS1r
    RtTD5VNcZWqafwn6

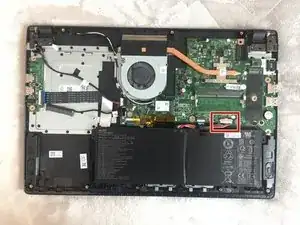

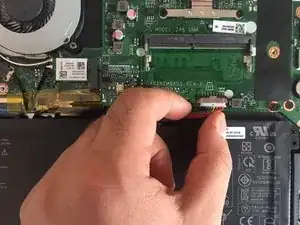

    • Pull out the plug connecting the battery to the motherboard.

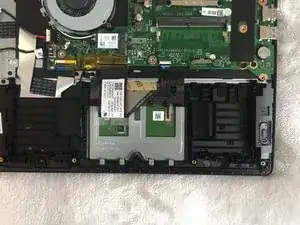

  13. nbhqG5WSwKMJNqRF
    nbhqG5WSwKMJNqRF
    bUCkvQN5BDtLFSAB

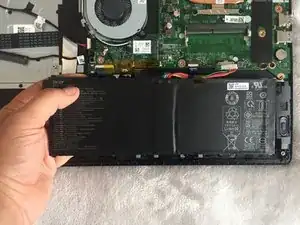

    • Pull the battery out of the groove.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

ShengKun Lu

Участник c: 15/01/20

757 Репутация

Один комментарий

Thanks for this tutorial ! You just forgot 3 screws: 2 on the right of the hard drive, and 1 on the top left =)

Troublicious -
