Accessing your Nokia 6230b Motherboard

Автор: Spencer Lines
  • Комментарии: 0
Accessing your Nokia 6230b Motherboard

Сложность

Moderate

Шаги

4

Необходимое время

Нет оценки

Введение

These steps will show how to remove some of the panels within your phone in order to access your motherboard and your phone's other inner components.

Инструменты

  1. mRjn1VUVZaK4RAvg
    mRjn1VUVZaK4RAvg
    KxCHqwxWUh1HNjN3

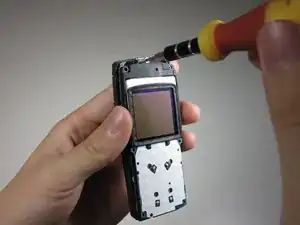

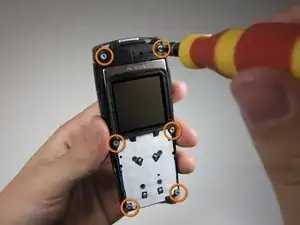

    • Using a T6 Torx Screwdriver, unscrew and remove the six screws shown in the picture.

  2. VL3VOxonCmQQPOCK
    VL3VOxonCmQQPOCK
    GMOoXA3fVJcDRU3k

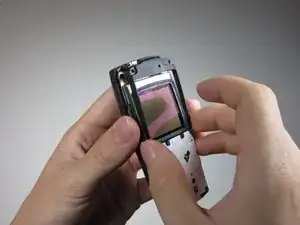

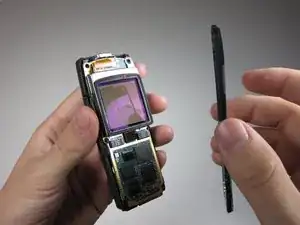

    • Remove the panel that covers the motherboard.

    • If replacing the speaker, stop at this step and skip forward to the first step of the speaker guide.

  3. baohAGD1BR5Kk15E

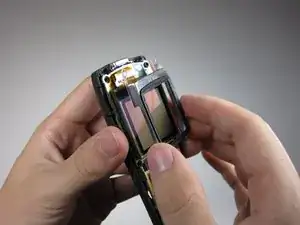

    • Remove the LCD screen frame.

  4. MLlNGZFdAwGCUvbv

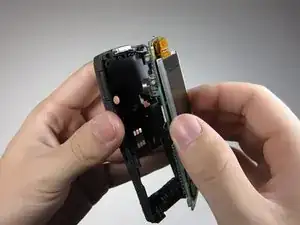

    • Remove the motherboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
