ASUS ZenWatch Charging Cradle Circuit board Replacement

Автор: Wayne McClure
  • Комментарии: 1
ASUS ZenWatch Charging Cradle Circuit board Replacement

Сложность

Easy

Шаги

2

Необходимое время

15 минут

Введение

Replacing the circuit in the charging cradle

  1. PjHGTBDmgJSLTa5c
    PjHGTBDmgJSLTa5c
    IeFtggL4iC2IWpUT
    aSUFUZHAwlvBKspP

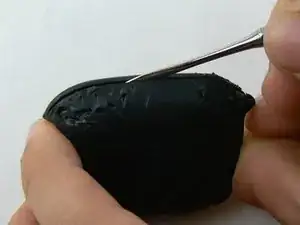

    • Using a metal spudger gently pry the plastic outer case apart

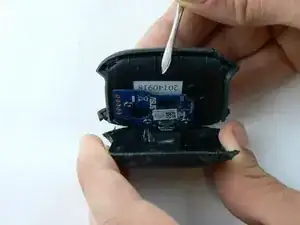

    • Pry open a little bit on each side before trying to open fully

  2. cXoAPUjSqUcLZAQy
    cXoAPUjSqUcLZAQy
    wujTyJNCGXFrUhY5
    VYjVJUVQuJwFIkLV

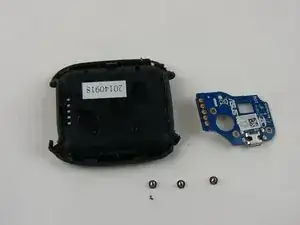

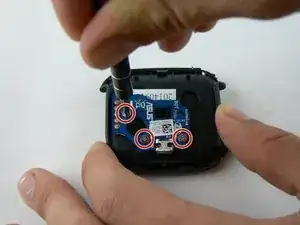

    • Use the PH0 sized Phillips screwdriver to remove the three screws (2mm) holding the board to the cradle.

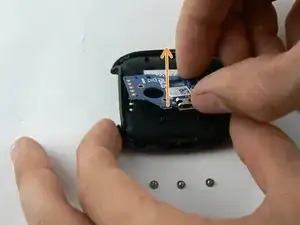

    • Gently pry up with your hands to pull the board off.

    • Don't grab directly on the USB port as you may loosen or bust the connections.

Заключение

To reassemble your device, follow these instructions in reverse order.
