ASUS VivoBook S300CA-BBI5T01 CMOS Battery Replacement

Автор: Keith Rachels
  • Комментарии: 1
ASUS VivoBook S300CA-BBI5T01 CMOS Battery Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 минут

Введение

This guide informs the viewer how to replace a CMOS battery, which controls the time,date, and hard disk of the computer. Please follow the steps below to replace the CMOS battery.

Инструменты

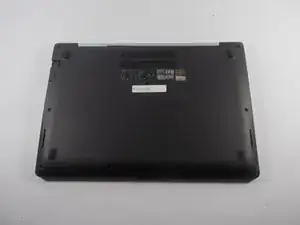

  1. L3idUDZ3LdTffGSN

    • Place the laptop upside down so that the bottom panel is facing upwards.

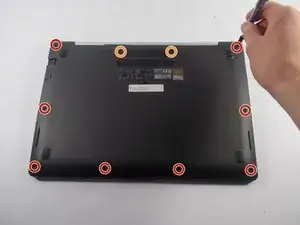

  2. lHtD15ot45kFSNLB

    • Unscrew the following 10 screws

    • Eight 5 mm Phillips head srews

    • Two 10 mm Phillips head screws

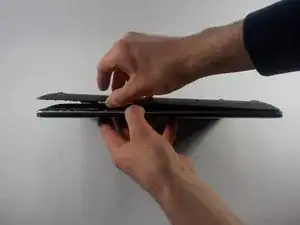

  3. LTSYH2D2R3THNOW2

    • Carefully peel the panel off of the bottom of the laptop.

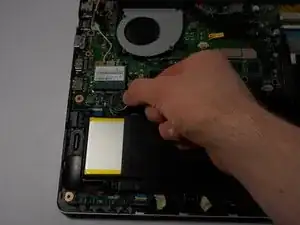

  4. sxGZZHIDo3XZoDM1

    • Carefully remove the CMOS battery from its port by lifting it upward.

Заключение

To reassemble your device, follow these instructions in reverse order.
