ASUS N56JR-MH71 Hard Drive Replacement

Автор: Ruben Lopez
  • Комментарии: 0
ASUS N56JR-MH71 Hard Drive Replacement

Сложность

Easy

Шаги

4

Необходимое время

3 минут

Введение

If you want to upgrade storage space, this guide will show you how to replace the hard drive. Be sure the hard drive length is 2.5" and width is 9.5 mm. Also the connection of the hard drive must be SATA3.

Инструменты

  1. kNu5XmP16CGdQske
    kNu5XmP16CGdQske
    ZsAEIDOaQc45vnFy

    • Push the battery latch.

  2. XU5vvKOTZir2B5Z1

    • Keep the battery latch held while you remove the battery.

  3. cTLh4JA2HOoeOat6
    cTLh4JA2HOoeOat6
    YpnZOXYiDOkfSCPN
    2MN6VnG4YtiKUxCj

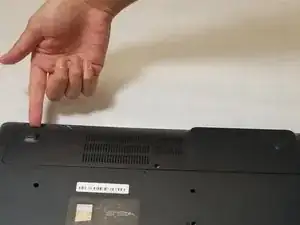

    • Remove the one screw securing the back cover.

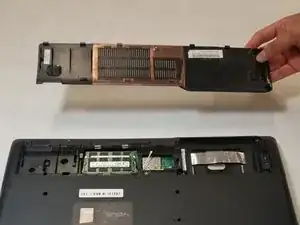

    • Pry off the cover using a finger.

    • This device was missing its screws on the back cover when we received the device. As a result, we do not know what head type the screws are, along with their lengths.

  4. ZwZxEQkes4k4cnjW

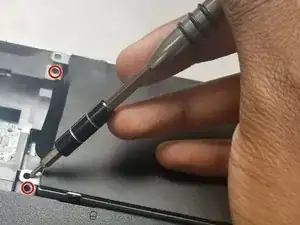

    • Remove the screws securing hard drive to the laptop.

    • Pull out the hard drive from the connector.

    • Replace with a new hard drive.

    • This device was missing its screws on the back cover when we received the device. As a result, we do not know what head type the screws are, along with their lengths.

Заключение

To reassemble your device, follow these instructions in reverse order.
