ASUS GL752VW-DH74 SSD Replacement

Автор: Ralph Lopez
  • Комментарии: 2
ASUS GL752VW-DH74 SSD Replacement

Сложность

Easy

Шаги

5

Необходимое время

5 минут

Введение

This guide will show you how to replace/upgrade the M.2 SSD in your ASUS.

Инструменты

  1. lwrTZGjVOySOJcBJ

    • Unscrew both 8mm phillip's head screws that hold on the access gate.

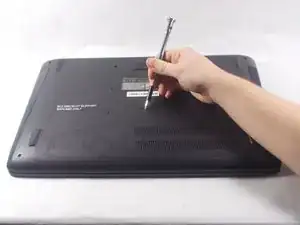

  2. ytHdurIPrPuWvNLQ

    • Use either the your finger, the screw driver, or a spudger to pop out the gate.

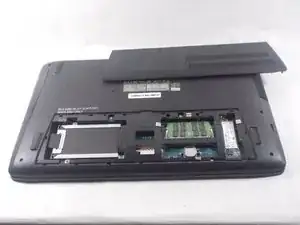

  3. AWLrHMGWvW6LqaDV

    • From here, you can access the hardrive, motherboard, SSD, and RAM.

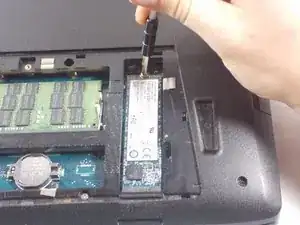

  4. TndJJVbiBrylrRvB

    • Remove the 4mm screw holding in the SSD.

    • Note that the screw is holding it down so it will pop up once the screw is removed.

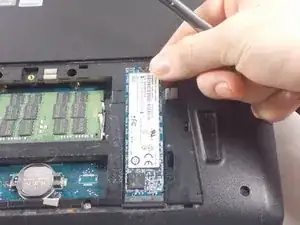

  5. QCgYbACHdYQQqXUb

    • Remove SSD from slot.

    for god sake this is ssd not ram

    Elvan Ong -

    I had the same exact reaction

    Macmonster 2 -

Заключение

To reassemble your device, follow these instructions in reverse order.
