ASUS Chromebook C100PA-RBRKT07 Keyboard Replacement

Автор: Anthony Gomez
  • Комментарии: 0
ASUS Chromebook C100PA-RBRKT07 Keyboard Replacement

Сложность

Moderate

Шаги

6

Необходимое время

8 - 10 минут

Введение

Details to remove the keyboard of ASUS Chromebook Flip C100PA-RBRKT07

  1. UGjryEWbK2qPLggL

    • Use the T5 screwdriver to remove the nine 2.1 mm screws from the bottom of the device.

  2. 4cc1ZuiQjBCRCRnU

    • Use the iFixit opening tool to remove the 4 pads to reveal six 3.1 mm screws underneath.

  3. IAjRMVT5Bi2GDRNM

    • Use the T5 screwdriver to remove the six 3.1 mm screws under the pads.

    • There might be a layer of tape that covers the screws. Remove the tape first with a pair of tweezers.

  4. LImlZgZG3qNdsnjq

    • Use the iFixit opening tool to remove the back of the laptop.

  5. n4GZU6T35tReXdgx

    • Use the blunt nose tweezers to separate the keyboard from the internal components.

  6. VveLPosRTX2rBgty
    VveLPosRTX2rBgty
    qwCULMAumru3cGA4

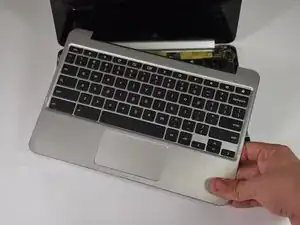

    • Remove the keyboard from the laptop.

    • The Trackpad is attached to the keyboard assembly. The Trackpad replacement guide can be found on the ASUS Chromebook CPPA-RBRKT07 homepage.

Заключение

To reassemble your device, follow these instructions in reverse order.
