ANKER SoundCore Microphone Replacement

Автор: Fiona Schmidt
  • Комментарии: 2
ANKER SoundCore Microphone Replacement

Сложность

Moderate

Шаги

6

Необходимое время

15 минут

Введение

The microphone in this device is located on the circuit board, below the speakers a speaker mount.

Before attempting to replace anything, it is recommended that you look at this device’s troubleshooting guide.

This procedure is necessary if the microphone is broken and not allowing the user to make calls through the device. The procedure requires tools to open the speaker and unscrew the fastening screws. Soldering experience is also suggested.

  1. 23iGaybrIBmbdm5I
    23iGaybrIBmbdm5I
    XpMLfKHtRYUi15GH
    6GNRH5Rnq15EeKAQ

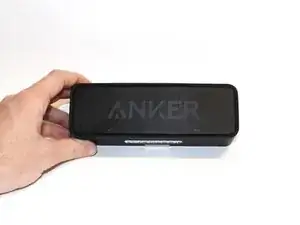

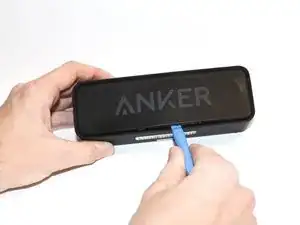

    • Use the plastic opening tool to pry off the screen.

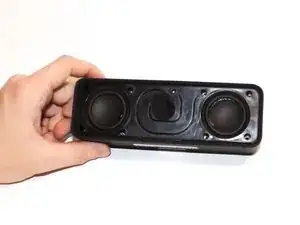

    • Remove the screen from the device.

  2. nAXo1VBAqGdSKd1H

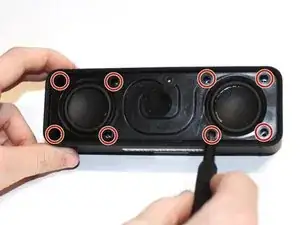

    • Use a Phillips #0 screwdriver to remove the eight 10mm screws securing the speaker mount to the speaker body.

  3. kXnYMtrWXWLi1XkA
    kXnYMtrWXWLi1XkA
    qvGEyZQUAfimi3cU

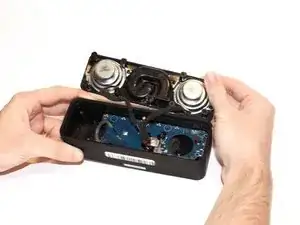

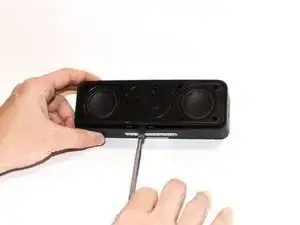

    • Use the metal spudger tool to lift and remove the speaker mount.

    • Ensure all wires remain properly secured to device.

    I really like reading through a post that can make people think. Also, many thanks for permitting me to comment!

    <a href="http://barristerbabutv.com//">Barrister Babu Tv</a>

    barrister babutv -

  4. gmeI4Q5xIPJurAxU

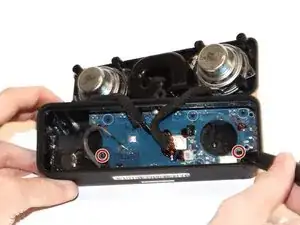

    • Use a Phillips #0 screwdriver to remove two 8mm screws from circuit board.

  5. OGHlSBVTYeWEaYjp

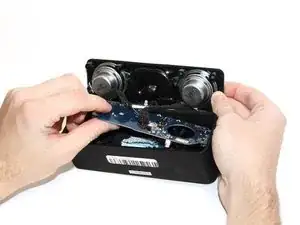

    • Carefully remove the circuit board from the speaker body.

  6. AAvFuQKiP2IZuytF
    AAvFuQKiP2IZuytF
    GD6RMPp6hNjFICsA

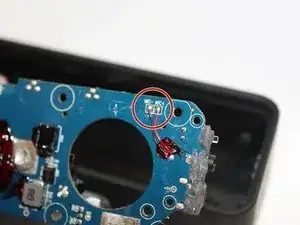

    • Desolder the two points connecting the microphone to the circuit board.

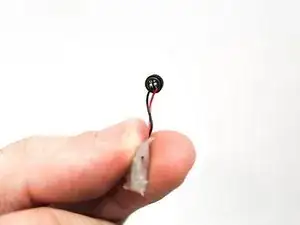

    • Remove the microphone from circuit board.

    • For help soldering and desoldering follow this guide.

    It’s hard to come by experienced people about this subject, but you seem like you know what you’re talking about! Thanks

    <a href="https://shubhaarambhh.com/">Shubhaarambhh</a>

    Shubhaarambhh Drama -

Заключение

To reassemble your device, follow these instructions in reverse order.
