2013-2016 Scion FR-S Engine Air Filter Replacement

Автор: Mark Symonenko
  • Комментарии: 0
2013-2016 Scion FR-S Engine Air Filter Replacement

Сложность

Easy

Шаги

6

Необходимое время

5 - 10 минут

Введение

This guide will take you through how to swap out the engine air filter in your 2013-2016 Scion FR-S (aka Toyota gt86.) A dirty air filter can cause your car to lose power and reduce the miles per gallon.

Dealerships recommend that you replace the engine air filter every 15,000-30,000 miles, depending on the driving conditions.

Запчасти

  1. qWdnNnkRnB3sEnUP
    qWdnNnkRnB3sEnUP
    PxKYSGNfsTKMasgc
    iv1IZEN2FVWopHgf

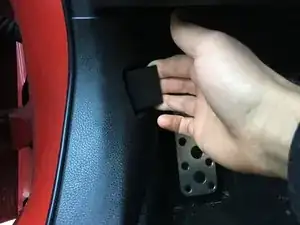

    • Pull the handle located near the driver's left leg to unlock the hood.

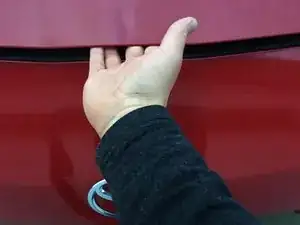

    • Pull the secondary latch located to the right of the emblem.

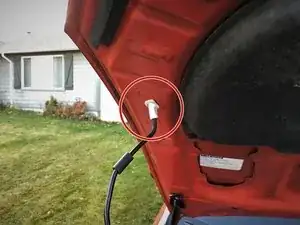

    • Prop up the hood.

    • Make sure you're not working in a high wind area, as that might blow the hood backward and damage your vehicle.

  2. oJhYpEDRCLotbNZR

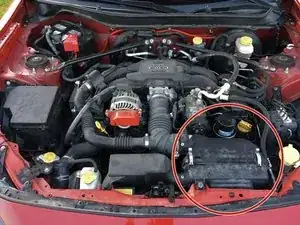

    • Locate the air filter box, which can be found to the front right of the car.

  3. HKd3S5YRIc2lOJPk
    HKd3S5YRIc2lOJPk
    Y4OWOeFgLiPGkyTp
    XkNLBZNvX2bGHbcG

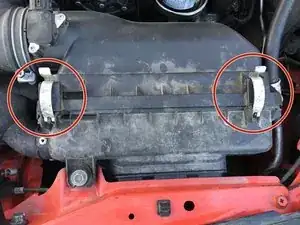

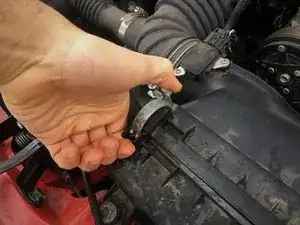

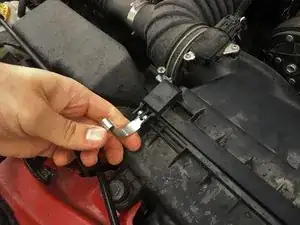

    • Pull the metal clips up from the top. They will pop out.

  4. fhKUVQoOYxDSctuG
    fhKUVQoOYxDSctuG
    eO5KSsw3rsLLmebX
    IlKHG2uavbBnTucK

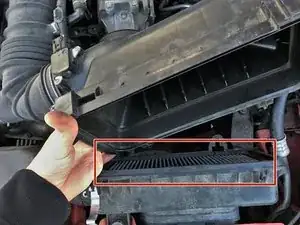

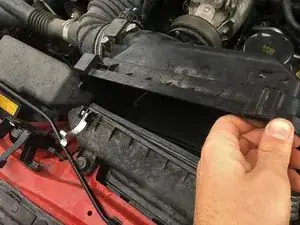

    • Grab the back of the box and pull it towards the top.

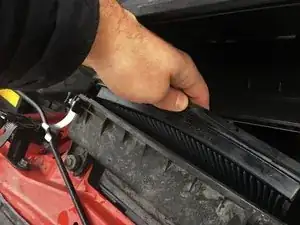

    • To pull out the air-filter, simply pull it away from the car and lift up.

  5. SmUGeuepDNIexNJw

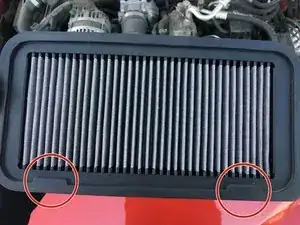

    • Repeat the process in reverse to install the air filter.

    • Make sure that the tabs on the filter are on the bottom.

  6. 6QwWpfqrLi3UlwDT

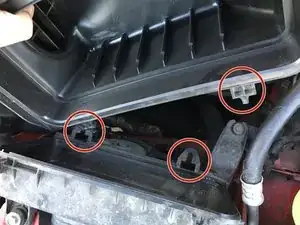

    • Line up the little pins on the cover of the box with the base of the box in order to close it.

    • Clip the pins back in and you're done!

Заключение

Now that the new filter is installed, you're good to go.
