2013-2018 Volvo V60 2.5 T5 Engine Air Filter Replacement

Автор: Noah Oikarinen
  • Комментарии: 0
2013-2018 Volvo V60 2.5 T5 Engine Air Filter Replacement

Сложность

Easy

Шаги

6

Необходимое время

10 - 20 минут

Введение

After about every 12,000 to 15,000 miles the air filter should be replaced because there will be a buildup of things like leaves and dust. This build up blocks the air filter from functioning properly and needs to get replaced.

Инструменты

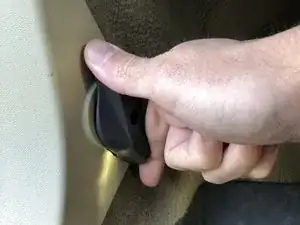

  1. TadVDdamXONmMMcW
    TadVDdamXONmMMcW
    HvOmOiOoKUaVqvNQ

    • Unlatch the hood by pulling on the hood release lever.

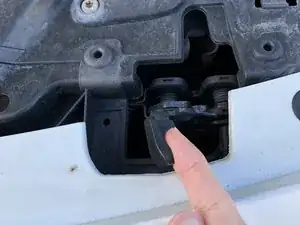

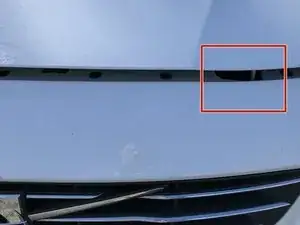

  2. 32sKvOBEK45gtpxW
    32sKvOBEK45gtpxW
    P1APtyoSSQo12SRs

    • Open the hood by pushing left on the hood latch.

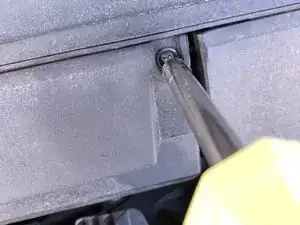

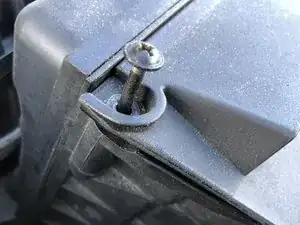

  3. VTFd13LRhAMbN1NT
    VTFd13LRhAMbN1NT
    ySCMgeVEWmq2Aodd

    • Remove the two 2 inch screws from the case using the Phillips #2 screwdriver.

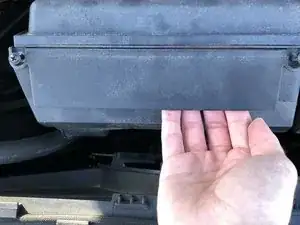

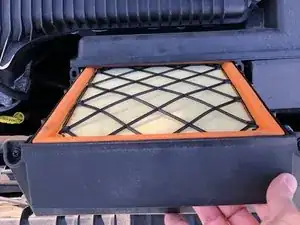

  4. 5eIETIgQSwkX6g1B
    5eIETIgQSwkX6g1B
    SO2Sm3YAYqBuIPsa

    • Pull the air filter towards you to take out the air filter.

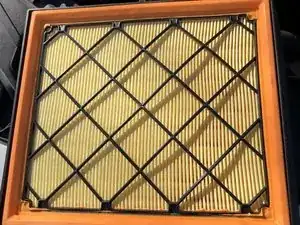

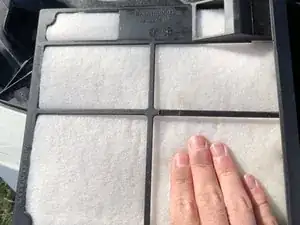

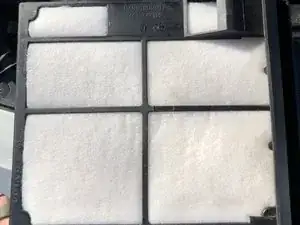

  5. K2uPWLYeUCVOMMIp
    K2uPWLYeUCVOMMIp
    JeMtBM2ORidphDaA
    Ny4jDOvCBScuyNZj

    • Take out the old air filter by flipping it over and pushing it out through the bottom.

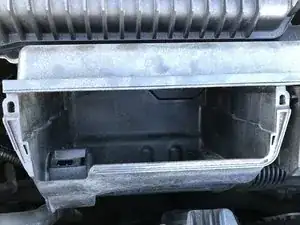

  6. OblFkcBJF5tPvwoi
    OblFkcBJF5tPvwoi
    6UpEOwjKKjQQWDsy

    • Clean out any extra debris that maybe in the air filter holder or inside the engine.

Заключение

To reassemble your device, follow these instructions in reverse order.
