2007 Toyota Avalon air filter Replacement

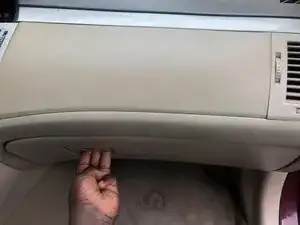

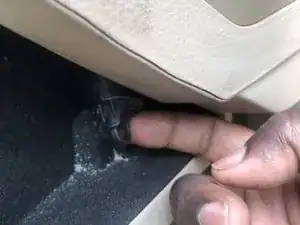

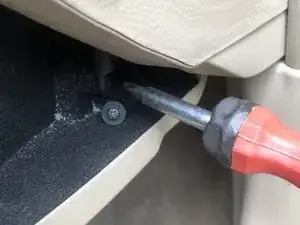

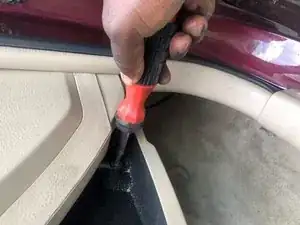

To access the air filter you must open the glove box and use a Philips head screwdriver to remove the screw attached to the dampener arm on the right side.

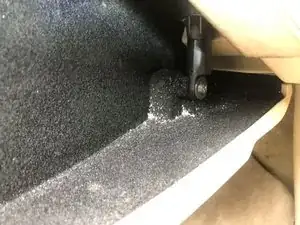

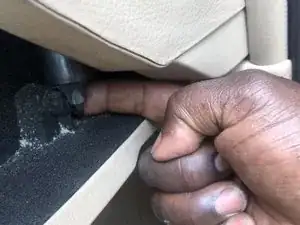

Unhook the dampener arm.

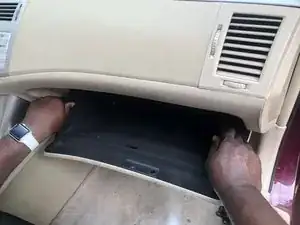

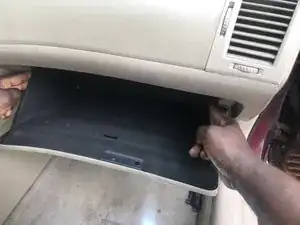

Push in the sides of the glove box to release the stops and to lower the glove box.

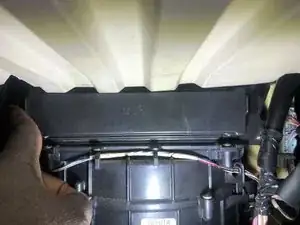

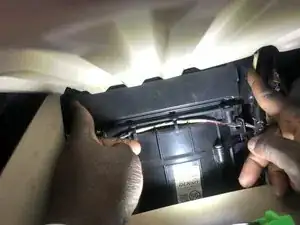

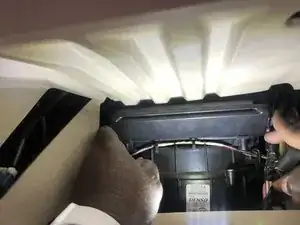

Unclip both sides of the housing cover in order and remove it.

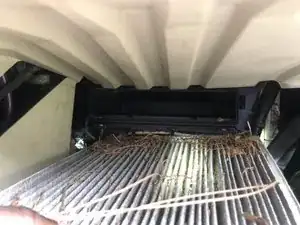

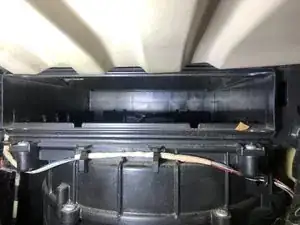

Remove the old filter and clean any debris inside.

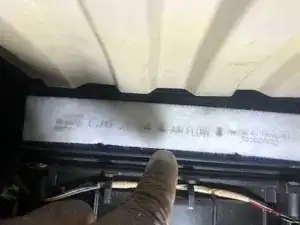

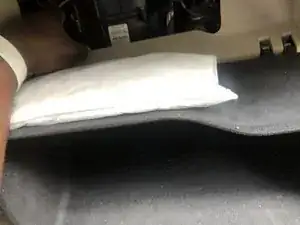

Install the new CAF1816P filter into the housing. Note: The arrow should point downwards indicating the direction of the airflow.

Reinstall the housing cover and the glove box assembly.

Reattach the dampener arm with Phillips head screw to the glove box and close it well.
