1996-1998 Acura TL Rear Speaker Replacement

Автор: Brayden
  • Комментарии: 0
1996-1998 Acura TL Rear Speaker Replacement

Сложность

Moderate

Шаги

4

Необходимое время

Нет оценки

Введение

This guide will show you have to access the rear speaker located behind the back seat headrest.

  1. QnXr1LcSesn2SYpv

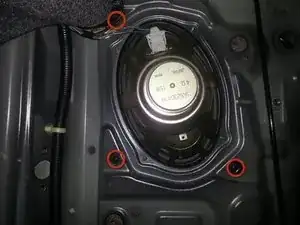

    • Remove the three screws holding the speaker panel in place.

  2. kCodLSktaariEDIc

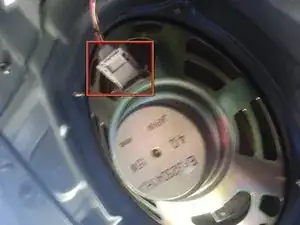

    • Disconnect the wiring harness in trunk.

  3. s2VNYQuAWyaYGjW1

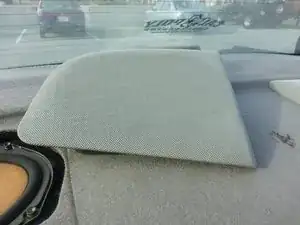

    • Slide the speaker panel towards the center of car and pull it out.

  4. 2JABtZ6IeRETBGRh

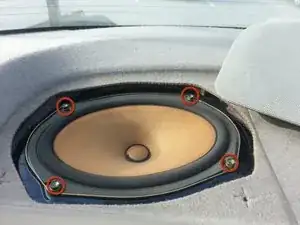

    • Remove the four screws holding the speaker in.

    • Lift the speaker out and removal is complete.

Заключение

To reassemble your device, follow these instructions in reverse order.
