Введение
В этом руководстве описаны распространенные проблемы с катушечной молнией и то, можно ли их устранить с помощью замены слайдера молнии или требуется полная замена линии молнии.
Правильная диагностика проблемы - это второй шаг в процессе ремонта молнии Patagonia. Запасные части Patagonia можно получить, позвонив по телефону или написав в Служба поддержки клиентов Patagonia.
Три этапа ремонта молнии Patagonia
.
- Определите тип молнии.
- Диагностировать проблему
- Диагностика проблемы с катушечной молнией
- Диагностика проблемы пластикового зуба-молнии
- Ремонт молнии
-
-
Осторожно расстегните молнию, а затем проверьте, нет ли мусора в ящике для молний.
-
Снова вставьте булавку в коробку молнии, убедившись, что она вставлена как можно глубже, и снова застегните молнию.
-
Если этот способ не сработал или слайдер отсутствует полностью, скорее всего, проблема будет решена заменой слайдера молнии Coil.
-
-
-

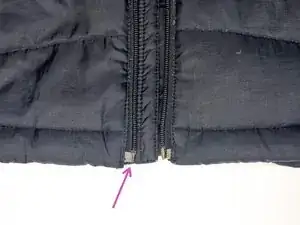

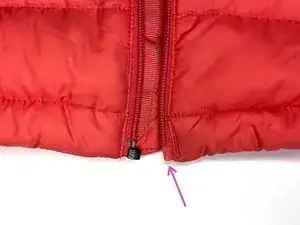

У застежки-молнии на первой фотографии отсутствует коробка для молнии внизу, куда вставляется булавка. У застежки-молнии на второй фотографии отсутствует булавка для застежки-молнии. Единственный способ устранить эти проблемы - заменить всю линию застежки-молнии.
-
Ознакомьтесь с Продвинутые техники ремонта молний без шитья,чтобы получить временное быстрое решение.
-
-
-
Ознакомьтесь с Продвинутые техники ремонта молний без шитья,чтобы получить временное быстрое решение.
-
-
-
Ознакомьтесь с Продвинутые техники ремонта молний без шитья,чтобы получить временное быстрое решение.
-
-
-
Ознакомьтесь с Продвинутые техники ремонта молний без шитья,чтобы получить временное быстрое решение.
-
11 комментариев

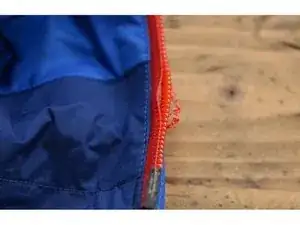

I would like to know how to repair a zipper when some of the coils have become unsewn from the zipper tape; i.e., the thread/stitches have worn away from use. Do I just sew over and under the coils? The original stitches were like crochet, with the thread pulled through loops, and they went over the top of the coil as well the bottom. I don't have a crochet hook that small and am wondering what is the best way to proceed. The stitches must not get in the way of the "zipping" action. Any ideas?
Thanks!
Hi Pam, I know you posted this in 2016, but this might help other as well. There is a chain stitch that YKK uses in manufacturing that holds the coil in place and helps keep each coil aligned. Likely at this point, you need a new zipper replacement. Because the chain stitch broke it will continue to unravel and cause problems with normal operation. Any Patagonia customer with this issue could send in their jacket for zipper replacement.
With a hand lens I can see the the plastic coils, which are otherwise in good condition, have worn flats at their edges where the taper on the slider pushes the coils together. Is there similar or worse wear on the metal slider? Seems unlikely. Do replacement sliders have a slightly narrower taper to allow for the worn plastic? If the replacement metal slider is the same size as the original I can't see why it would solve the problem of poor meshing of the coils when under slight load.
The most likely reason that your zipper opens up is that the slider is loose and unable to mesh or engage the coil element properly. You may be able to squeeze the slider at the top and bottom together with a pair of pliers to tighten it back up. Be mindful that you can over tighten or squeeze the slider and prevent it from moving. Do this incrementally, adding slight pressure and test the function to measure your progress.
Your other question: New sliders are just that, new and have not loosened up over time with use.
Another possibility or problem is that a section of the coil is out of alignment and can't mesh together. You might be able to simply bend the specific coil back into alignment like the other coils above and below are positioned. If neither of these solutions
If any of these three solutions don't work you can send it to Patagonia for Repair.
Hi I have a branc new zipper the slide has been separated from one side of the coil how can I push coil back in the slide?
