Инструменты

Вот некоторые основные инструменты, используемые для работы на данном устройстве. Вам, возможно, не понадобиться каждый инструмент для каждой процедуры.

Background

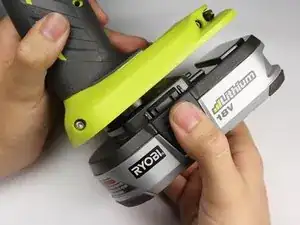

The Ryobi P202 is part of the Ryobi One+ 18 volt cordless tool system. It is sold in the Ryobi P817 kit with a charger, battery, and carrying case. It is compatible with both the original NiCad and newer Lithium Ion battery packs.

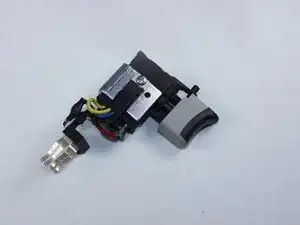

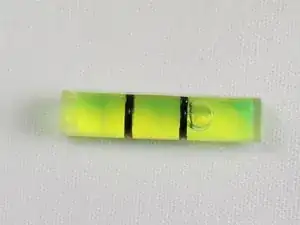

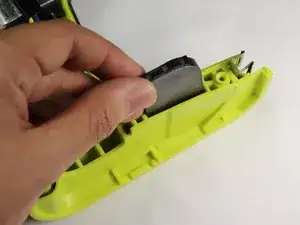

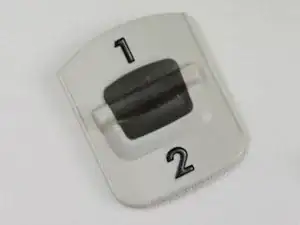

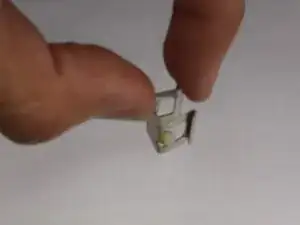

This model has neon green plastic with grey rubber coverings. It has a built in level gauge and a two speed switch on the top of the drill. A magnetic tray, and drill bit clip are found on the base of the drill. The drill has a pressure sensitive trigger and has a maximum RPM of 1600 as seen on the warning label.

Identification

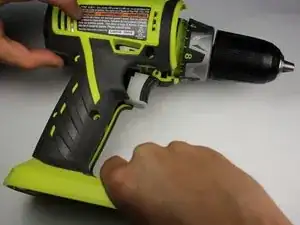

With the trigger pointing right, the label on the side of the drill shows a warning label as well as the identification name of P202.

Technical Specifications

  • 18-Volt
  • Holds up to 1/2 inch drill bits
  • Spins up to 1600 RPM
  • 24 torque settings
  • Level gauge
  • Magnetic tray
  • Drill bit clip holder

Additional Information

Ryobi Manual

Ryobi One+ Overview

Blown Out Diagram

Wiring Diagram

Manuals Lib Manual

Parts List
