Инструменты

Вот некоторые основные инструменты, используемые для работы на данном устройстве. Вам, возможно, не понадобиться каждый инструмент для каждой процедуры.

Background and Identification

The Huawei P10 Plus Android smartphone was produced by Huawei as the higher-end phone to the Huawei P10. The P10 Plus was available in white, blue, gold, black, silver, rose gold, and green bodies. The P10 Plus includes a scratch-resistant glass front and an aluminum back and frame. The phone is also splash-resistant and includes a 3.5mm headphone jack. This device was not available in the United States.

The P10 and P10 Plus both feature main dual 20-megapixel and 12-megapixel cameras. The P10 Plus comes with a 5.5-inch QHD display, while the P10 has a 5.1-inch full HD display. The P10 Plus includes either 64 GB of internal storage and 4 GB of RAM or 128 GB of internal storage and 6 GB of RAM. The P10 variant contains 4 GB of RAM and 32 GB of expandable storage.

The P10 Plus includes a non-removable 3750 mAh battery with 18-Watt fast-charging capabilities. (A non-removable battery is one whose adhesive is permanent, making repair and replacement difficult.) The Plus features a front-mounted fingerprint sensor as well as an accelerometer, gyro, proximity, and compass sensors. It includes a single SIM and hybrid dual SIM capabilities, meaning it can contain a nano-SIM card and a second stand-by SIM card.

A TechRadar review praised the P10 Plus’s high-quality QHD screen and cameras but found that the phone’s navigation key was poorly designed.

Technical Specifications

Models: VKY-L29, VKY-L09, VKY-AL00

Release date: April 2017

Body:

  • Dimensions and Weight: 153.5 x 74.2 x 7 mm (6.04 x 2.92 x 0.28 in), 165 g (5.82 oz)
  • Build: Glass front (Gorilla Glass 5), aluminum back, aluminum frame
  • SIM: Single SIM (Nano-SIM) or Hybrid Dual SIM (Nano-SIM, dual stand-by)
  • Splash resistant

Display:

  • Type: IPS-NEO LCD capacitive touchscreen, 16M colors
  • Size: 5.5 inches, 81.5 cm2 (~71.6% screen-to-body ratio)
  • Resolution: 1440 x 2560 pixels, 16:9 ratio (~540 ppi density)
  • Protection: Corning Gorilla Glass 5

Platform:

  • OS: Android 7.0 (Nougat), upgradable to Android 9.0 (Pie), EMUI 9.1
  • Chipset: Kirin 960 (16 nm)
  • CPU: Octa-core (4x2.4 GHz Cortex-A73 & 4x1.8 GHz Cortex-A53)
  • GPU: Mali-G71 MP8

Memory:

  • Card slot: microSDXC (uses shared SIM slot)
  • Internal: 64GB 4GB RAM, 128GB 6GB RAM
  • eMMC 5.1, UFS 2.0, or UFS 2.1

Main Camera:

  • Dual:
    • 12 MP, f/1.8, 28mm (wide), PDAF, Laser AF, OIS
      20 MP B/W, f/1.8, 27mm (wide), 1/2.7"
  • Features: Leica optics, dual-LED dual-tone flash, HDR, panorama
  • Video: 4K@30fps, 1080p@60fps

Selfie Camera:

  • Single: 8 MP, f/1.9
  • Video: 1080p@30fps

Sound:

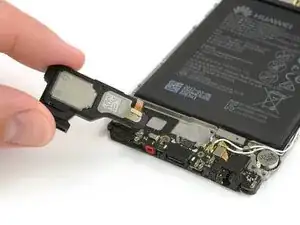

  • Loudspeaker: yes, with stereo speakers
  • 3.5 mm jack: yes
  • 24-bit/192kHz audio

Communications:

  • WLAN: Wi-Fi 802.11 a/b/g/n/ac, dual-band, DLNA, Wi-Fi Direct, hotspot
  • Bluetooth: 4.2, A2DP, LE, aptX
  • GPS: Yes, with A-GPS, GLONASS, BDS, GALILEO
  • NFC: Yes
  • Infrared port: Yes
  • Radio: No
  • USB: 2.0, Type-C 1.0 reversible connector

Features:

  • Sensors: Fingerprint (front-mounted), accelerometer, gyro, proximity, compass

Battery:

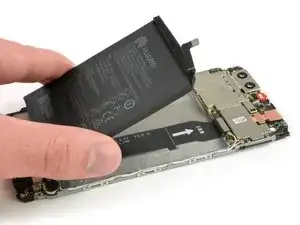

  • Non-removable Li-Ion 3750 mAh battery
  • Charging: Fast charging 18W

Miscellaneous:

  • Colors: Ceramic White, Dazzling Blue, Dazzling Gold, Graphite Black, Mystic Silver, Rose Gold, Greenery

Additional Information
